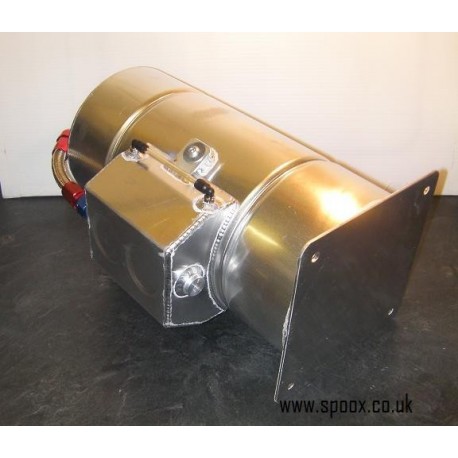

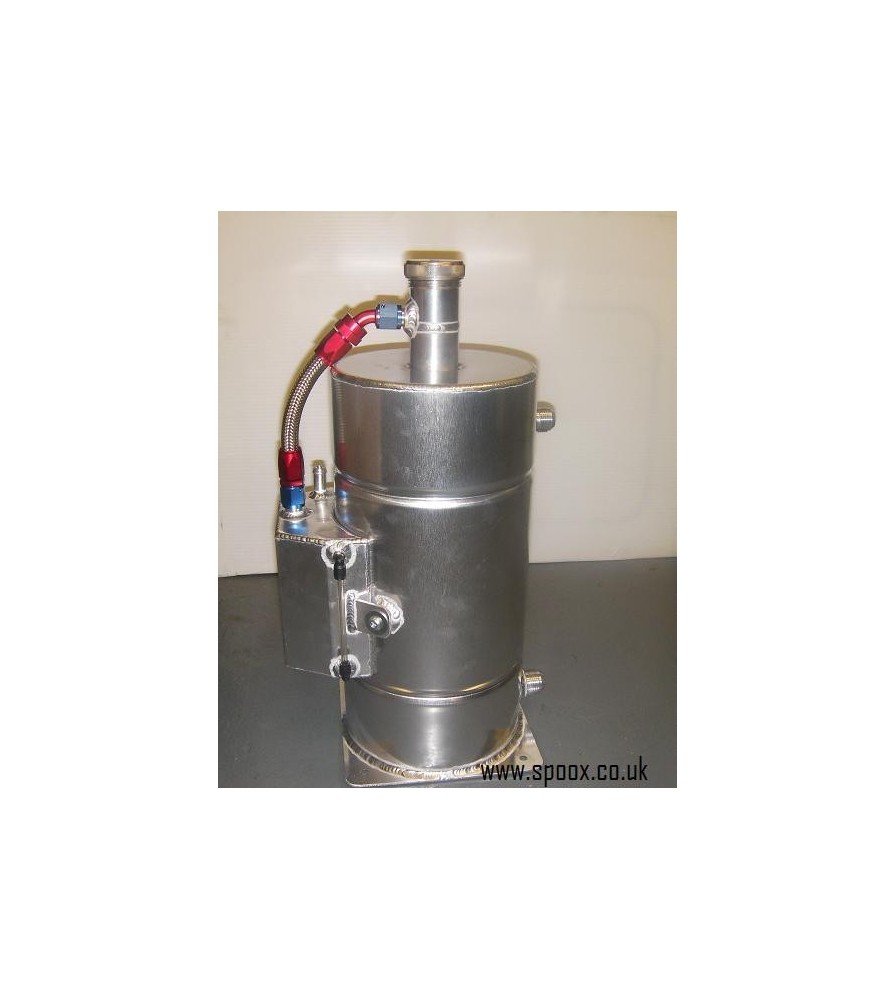

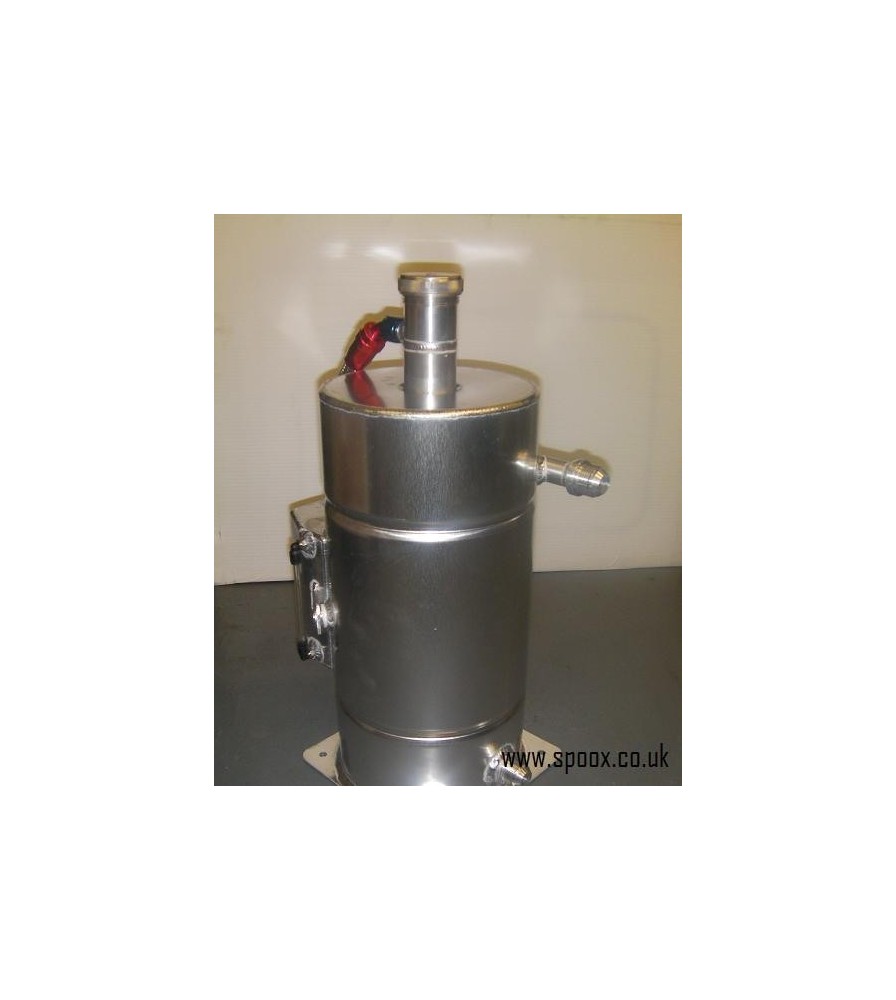

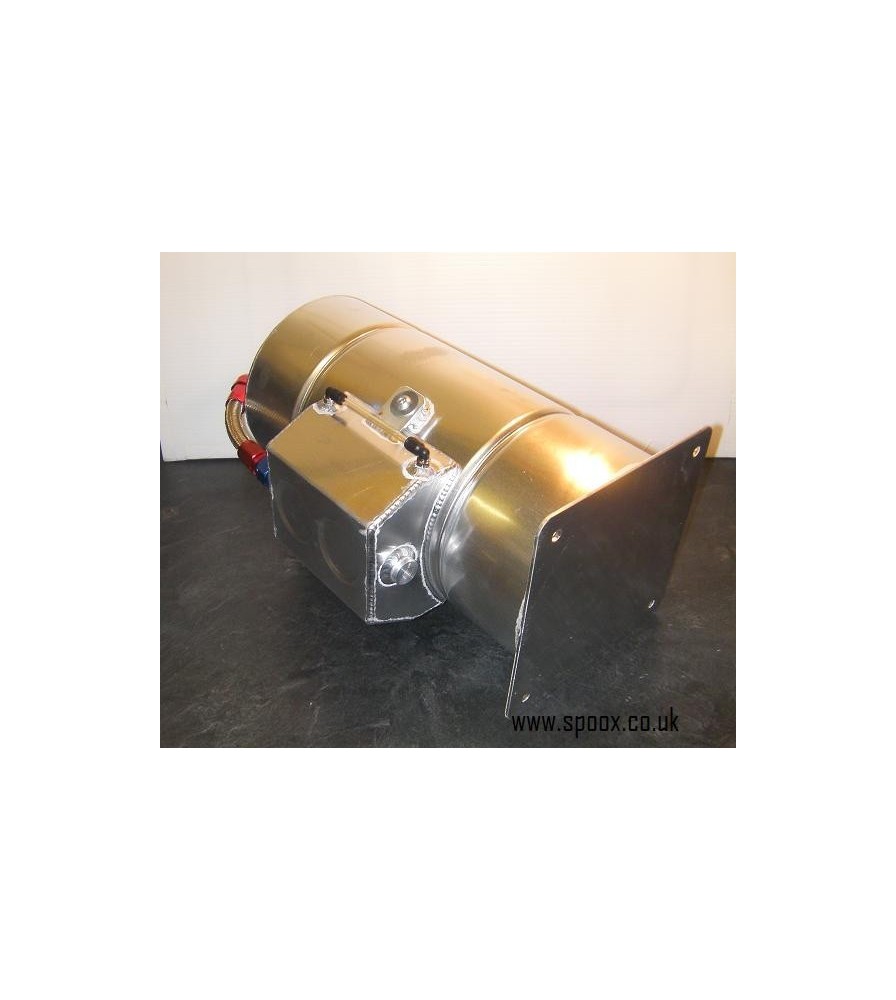

Spoox Motorsport Dry Sump Tank View larger

Spoox Motorsport Dry Sump Tank.

AP020

New product

£ 834.00 tax incl.

  • Spoox Motorsport alloy dry sump tank suitable for all applications



    Capacity : 2-2.25 Gallons

    Total height : 495mm

    Base plate : 205mm x 205mm

    Tank diameter : 190mm

    Tank height excluding filler neck : 395mm

    Inlet : -12 JIC

    Outlet : -12 JIC

    Outlet to Breather Tank : J.I.C - 10

    Twin internal baffles

    Alloy screw cap incl integrated dipstick (needs scribing for level) and sealing ring.

    Catch tank width : 145mm

    Catch tank height : 140mm

    Catch tank depth : 50mm from centre of radius,85mm from edge.

    Sight tube J.I.C - 10 inlet 13mm outlet suit filter (not incl,not shown)

    M8 drain plug
