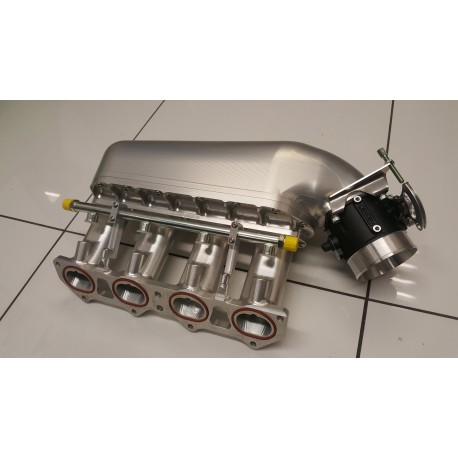

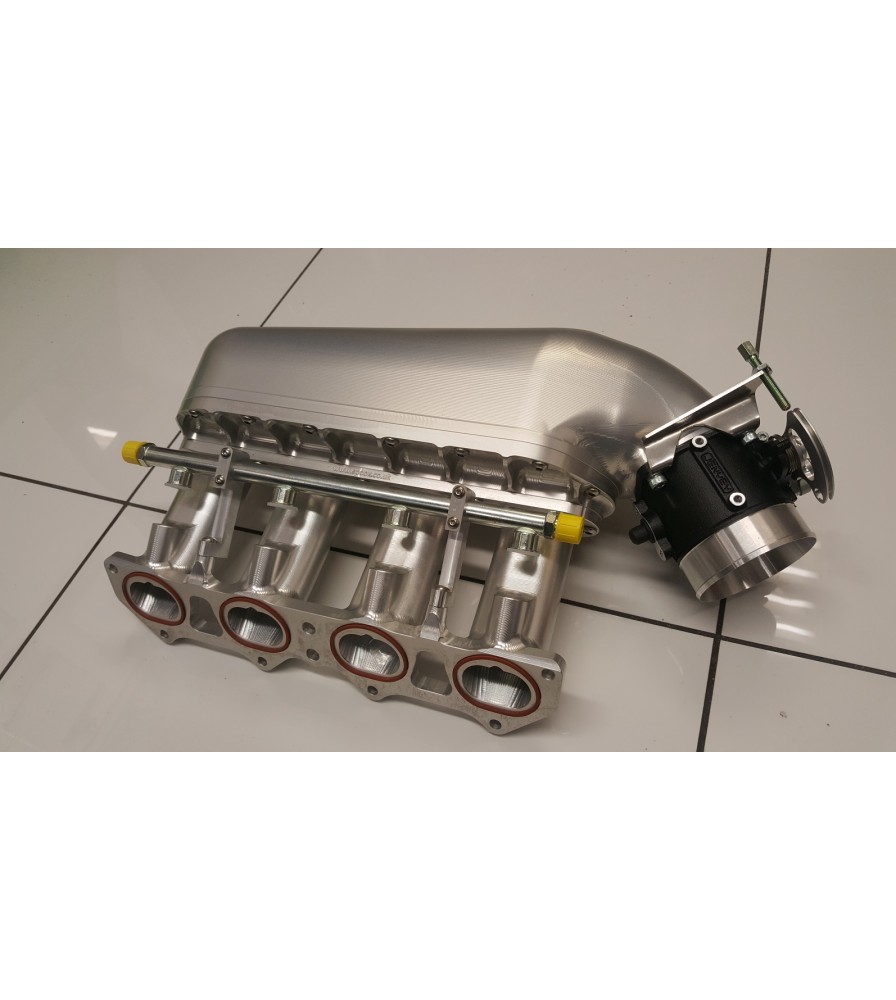

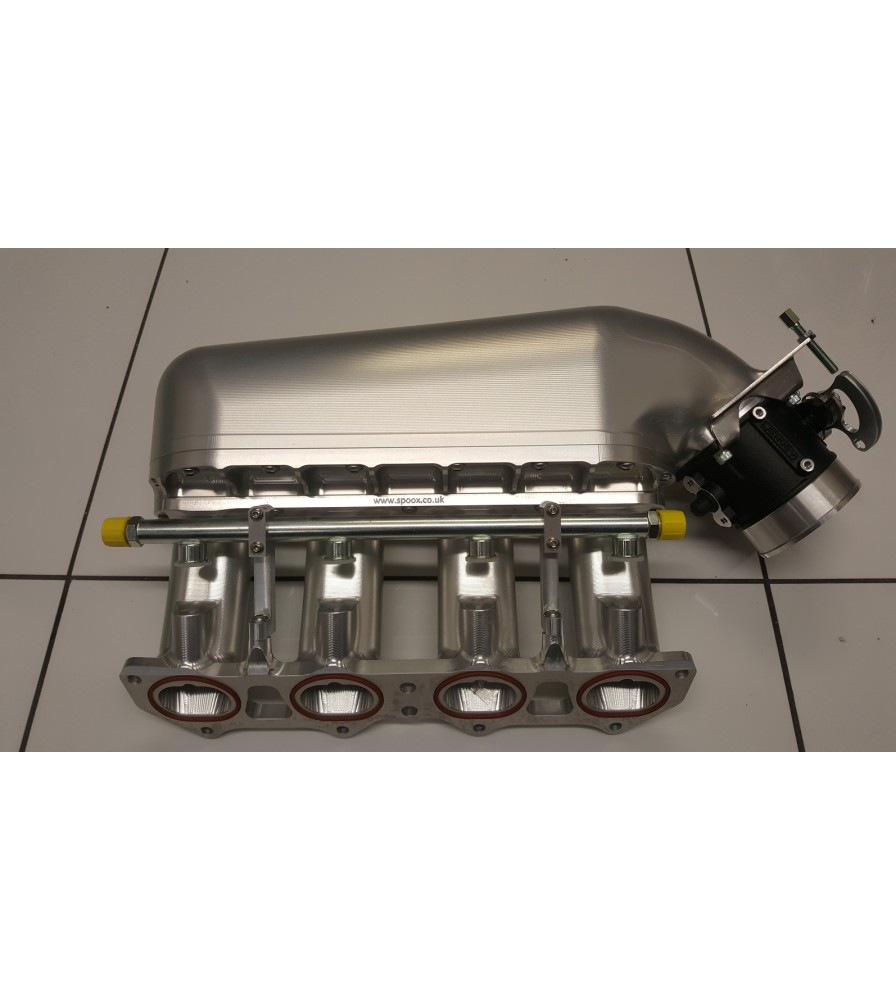

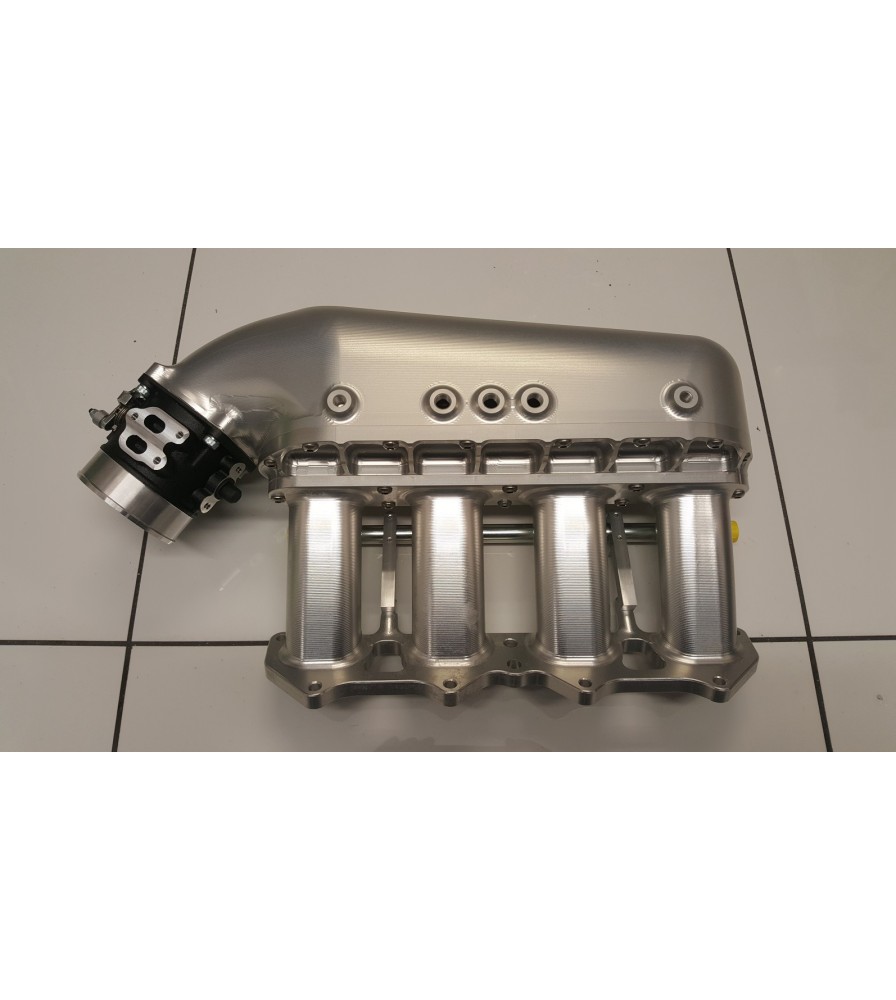

Citroen C2 TU5JP4 Billet Alloy Inlet Manifold View larger

Citroen C2 TU5JP4 Billet Alloy Inlet Manifold

MF067

New product

£ 2,100.00 tax incl.

  • Citroen C2 TU5JP4 Billet Alloy Inlet Manifold

    Designed by us for a perfect fit and outstanding performance this 3 piece billet alloy inlet manifold is an absolute must for all high power turbocharged or supercharged TU5 engine applications.

    Manufactured in 3 pieces from 7 series alloy the manifold is not only light but incredibly strong.

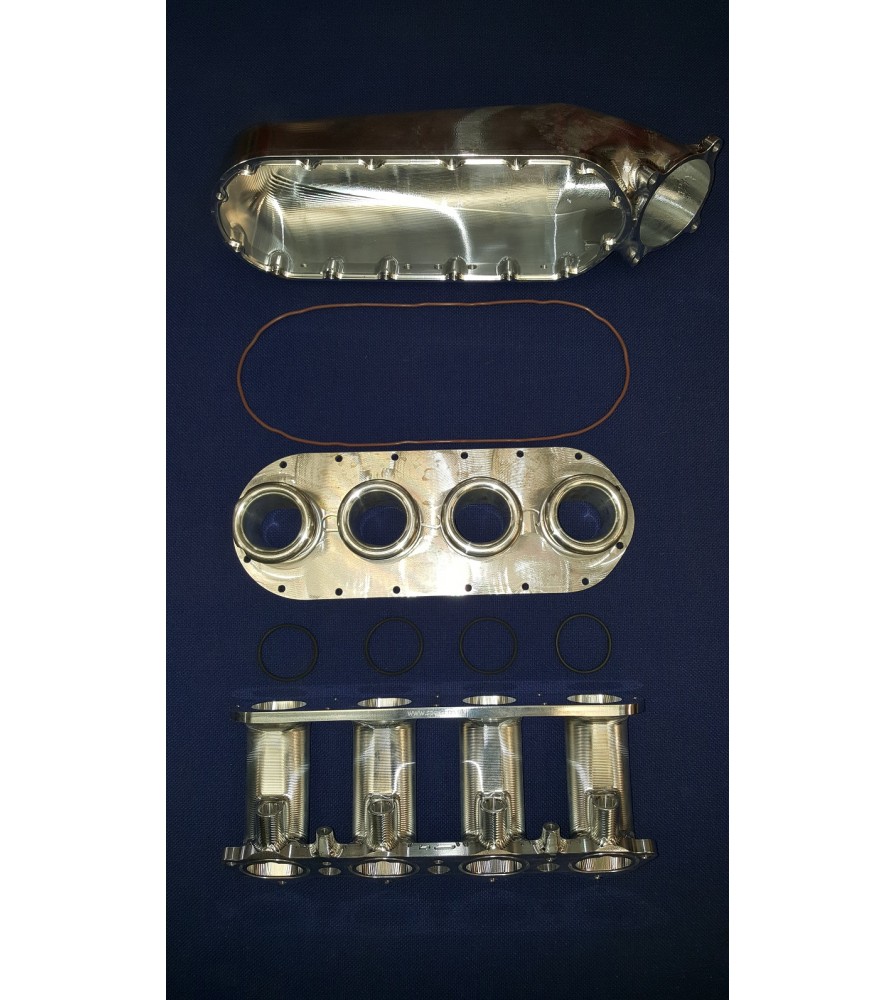

    The manifold consists of :

    Inlet runner section with "O" ring seals at the cylinder head face

    Plenum baseplate section with integrated velocity stacks and "O" ring seal to the runner section and 3 tapped M10x1 takeoffs for AIT sensor, MAP sensor and vacuum takeoff for dump valve or fuel pressure regulators.

    Plenum cover with "O" ring seal to the plenum baseplate

    Jenvey 70mm diameter throttle body with cable holder

    High flow steel fuel rail with JIC-6 fittings

    Alloy fuel rail mounting kit

    As used on our own 550bhp TU turbo powered Peugeot 205 GTI in UK Time Attack
